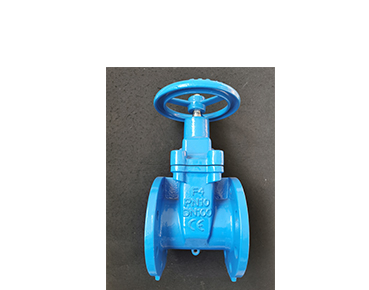

Non-rising stem gate valve
SPECIFICATION DN： DN50-DN600 PN： PN10/PN16 Design standard：DIN3352 Face to face length：DIN3352-F4/F5 Endflange：BS4504/BS EN1092-2 / GB/T17241.6. ISO7005.2 Test：BS EN1074-2 GB/T13927 Application Temps：≤80℃ |  |
材质 MATERIALS | |||
序号 ITEM | 部件名称 PARTS | 材质 MATERIAL | |
1 | 阀体/Body | 球墨铸铁/BSEN1563 EN-GJS(QT)-450-10 | |
2 | 闸板/Disc | 球墨铸铁/BSEN1563 EN-GJS(QT)-450-10 | |
3 | 阀杆/Stem | SS420 | |
4 | 铜螺母/Disc Nut | 锡青铜/ZCuSn5Pb5Zn5 | |
5 | 阀盖垫片/Bonnet Gasket | EPDM | |
6 | 阀盖/Bonnet | 球墨铸铁/BSEN1563 EN-GJS(QT)-450-10 | |
7 | 螺栓/Bolt | 碳钢镀锌/GAL Carbon Steel | |
8 | O型圈/O-Ring | EPDM | |
9 | O型圈/O-Ring | EPDM | |
10 | O型圈/O-Ring | EPDM | |
11 | 防尘圈/Anti-Dust Ring | EPDM | |
12 | 垫圈/Washer | 碳钢镀锌/GAL Carbon Steel | |
13 | 螺栓/Bolt | 碳钢镀锌/GAL Carbon Steel | |
14 | 手轮/Hand Wheel | 球墨铸铁/BSEN1563 EN-GJS(QT)-450-10 | |
15 | 方帽/Stem Cap | 球墨铸铁/BSEN1563 EN-GJS(QT)-450-10 | |
规格DIMENSIONS（PN10） | ||||||||||
DN | 长度length（mm) | ΦD | ΦD1 | H | H1 | B | N-ΦA | 螺栓尺寸 | 重量WEIGHT | |
(mm) | F4 | F5 | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | SIZE OF BOLT | (KG) |
50 | 150 | 250 | 165 | 125 | 277 | 227 | 19 | 4-Φ19 | M16 | 9 |
80 | 180 | 280 | 200 | 160 | 326 | 276 | 19 | 8-Φ19 | M16 | 14.2 |
100 | 190 | 300 | 220 | 180 | 364 | 314 | 19 | 8-Φ19 | M16 | 18.6 |
150 | 210 | 350 | 285 | 240 | 452 | 402 | 19 | 8-Φ23 | M20 | 36.2 |
200 | 230 | 400 | 340 | 295 | 538 | 487 | 20 | 8-Φ23 | M20 | 58.4 |
250 | 250 | 450 | 395 | 350 | 805 | 755 | 22 | 12-Φ23 | M20 | 85.4 |
300 | 270 | 500 | 445 | 400 | 818 | 768 | 24.5 | 12-Φ23 | M20 | 132 |
400 | 310 | 600 | 565 | 515 | 1049 | 999 | 24.5 | 16-Φ28 | M24 | 262.4 |
500 | 350 | 700 | 670 | 620 | 1257 | 1207 | 26.5 | 20-Φ28 | M24 | 385 |
600 | 390 | 800 | 780 | 725 | 1405 | 1355 | 30 | 20-Φ31 | M27 | 527 |
规格DIMENSIONS（PN16） | ||||||||||
DN | 长度length（mm) | ΦD | ΦD1 | H | H1 | B | N-ΦA | 螺栓尺寸 | 重量WEIGHT | |
(mm) | F4 | F5 | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | SIZE OF BOLT | (KG) |
50 | 150 | 250 | 165 | 125 | 277 | 227 | 19 | 4-Φ19 | M16 | 9 |
80 | 180 | 280 | 200 | 160 | 326 | 276 | 19 | 8-Φ19 | M16 | 14.2 |
100 | 190 | 300 | 220 | 180 | 364 | 314 | 19 | 8-Φ19 | M16 | 18.6 |
150 | 210 | 350 | 285 | 240 | 452 | 402 | 19 | 8-Φ23 | M20 | 36.2 |
200 | 230 | 400 | 340 | 295 | 538 | 487 | 20 | 12-Φ23 | M20 | 58.4 |
250 | 250 | 450 | 405 | 355 | 805 | 755 | 22 | 12-Φ28 | M24 | 85.4 |
300 | 270 | 500 | 460 | 410 | 818 | 768 | 24.5 | 12-Φ28 | M24 | 132 |
400 | 310 | 600 | 580 | 525 | 1049 | 999 | 28 | 16-Φ31 | M27 | 262.4 |
500 | 350 | 700 | 715 | 650 | 1257 | 1207 | 31.5 | 20-Φ34 | M30 | 385 |
600 | 390 | 800 | 840 | 770 | 1405 | 1355 | 36 | 20-Φ37 | M33 | 527 |
