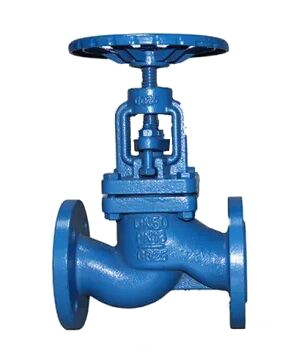

Globe Valve
SPECIFICATION DN：DN50-DN200 PN：PN10/PN16 Design standard：DIN3356 Face to face length：DIN 3202 Endflange：DIN2532/2533 Application Temps：0℃~200℃ |  |
Number |
Parts |
Material |
1 | Body | GG25 |
2 | Seat Ring | Stainless steel |
Bras | ||
3 | Disc Ring | Stainless steel |
Brass | ||
4 | Disc | GG25/Carbon steel |
5 | Stem | SS AISI 420 |
6 | Bonnet Gasket | Graphite With Soft Steel |
7 | Bonnet | GG25 |
| 8 | Packing | Graphite |
Main Dimensions | ||||||
Norminal | L | D | D1 | D2 |
n-d | H |
50 | 230 | 165 | 125 | 102 | 4-18 | 290 |
65 | 290 | 185 | 145 | 122 | 4-18 | 320 |
80 | 310 | 200 | 160 | 138 | 8-18 | 365 |
100 | 350 | 220 | 180 | 158 | 8-18 | 410 |
125 | 400 | 250 | 210 | 188 | 8-18 | 460 |
150 | 480 | 285 | 240 | 212 | 4-22 | 525 |
200 | 600 | 340 | 295 | 268 | 12-22 | 685 |
