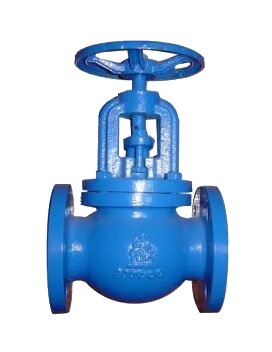

Globe Valve
SPECIFICATION DN：DN50-DN200 PN：PN10/PN16 Design standard：BS5152 Face to face length：BS4504 PN16 Test Standard：BS6755 Endflange：BS4504 Application Temps：0℃~200℃ |  |
Number |
Parts |
Material |
1 | Body | GG20 GG25 |
2 | Seat Ring | Brass, Bronze |
3 | Disc | GG20 GG25 |
4 | Steel Ball | GS-C25 |
5 | Packing | Graphite |
6 | Bonnet Gasket | Graphite |
7 | Stud | GS-C25 |
| 8 | Nut | GS-C25 |
| 9 | Gland | GG20 GG25 |
| 10 | Stud | GS-C2 |
| 11 | Bonnet | GG20 GG25 |
| 12 | Yoke Nu | Brass |
| 13 | Screw | GS-C25 |
| 14 | Stem | X10Cr13 |
| 15 | Handwheel | GG20 GG2 |
| 16 | Washer | GS-C25 |
| 17 | Nut | GS-C2 |
DIMENSIONS(PN 16) | ||||||||
DN | D | D1 | D2 | L |
H | b | n | d |
50 | 165 | 125 | 99 | 203 | 300 | 17 | 4 | 19 |
65 | 185 | 145 | 118 | 216 | 310 | 17 | 4 | 19 |
80 | 200 | 160 | 132 | 241 | 355 | 19 | 8 | 19 |
100 | 220 | 180 | 156 | 292 | 380 | 21 | 8 | 19 |
125 | 250 | 210 | 184 | 330 | 430 | 23 | 8 | 19 |
150 | 285 | 240 | 211 | 356 | 490 | 23 | 8 | 23 |
200 | 340 | 295 | 266 | 495 | 630 | 27 | 12 | 23 |
| 250 | 405 | 355 | 319 | 622 | 720 | 29 | 12 | 28 |
| 300 | 460 | 410 | 370 | 698 | 900 | 29 | 12 | 28 |
