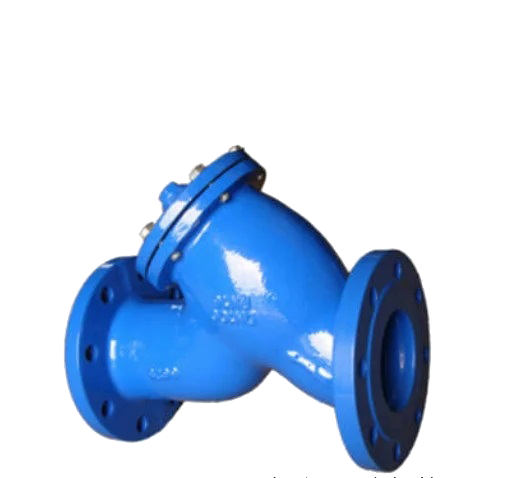

Y-strainer
SPECIFICATION DN： DN50-DN600 PN： PN10/PN16 Design standard：GB/T14382 DIN3357/EN12516-1 Face to face length：GB/T12221 DIN3202/EN558 Endflange：GB/T17241.6 DIN EN1092-1 Application Temps：0℃~220℃ |  |
ITEM | PARTS | MATERIAL |
1 | Body | DI |
2 | Filter | SS304 |
| 3 | End cap | DI |
Size | PN10 | PN16 | |||
DN | L | ФK | N-ФD | ФK | N-ФD |
50 | 220 | 125 | 4-Ф18 | 125 | 4-Ф18 |
65 | 250 | 145 | 4-Ф18 | 145 | 4-Ф18 |
80 | 280 | 160 | 8-Ф18 | 160 | 8-Ф18 |
100 | 320 | 180 | 8-Ф18 | 180 | 8-Ф18 |
125 | 360 | 210 | 8-Ф18 | 210 | 8-Ф18 |
150 | 430 | 240 | 8-Ф22 | 240 | 8-Ф22 |
200 | 485 | 295 | 8-Ф22 | 295 | 12-Ф22 |
250 | 595 | 350 | 12-Ф22 | 355 | 12-Ф26 |
300 | 605 | 400 | 12-Ф22 | 410 | 12-Ф26 |
350 | 715 | 460 | 16-Ф22 | 470 | 16-Ф26 |
400 | 785 | 515 | 16-Ф26 | 525 | 16-Ф30 |
450 | 855 | 565 | 20-Ф26 | 585 | 20-Ф30 |
500 | 900 | 620 | 20-Ф26 | 650 | 20-Ф33 |
600 | 1070 | 725 | 20-Ф | 770 | 20-Ф36 |
